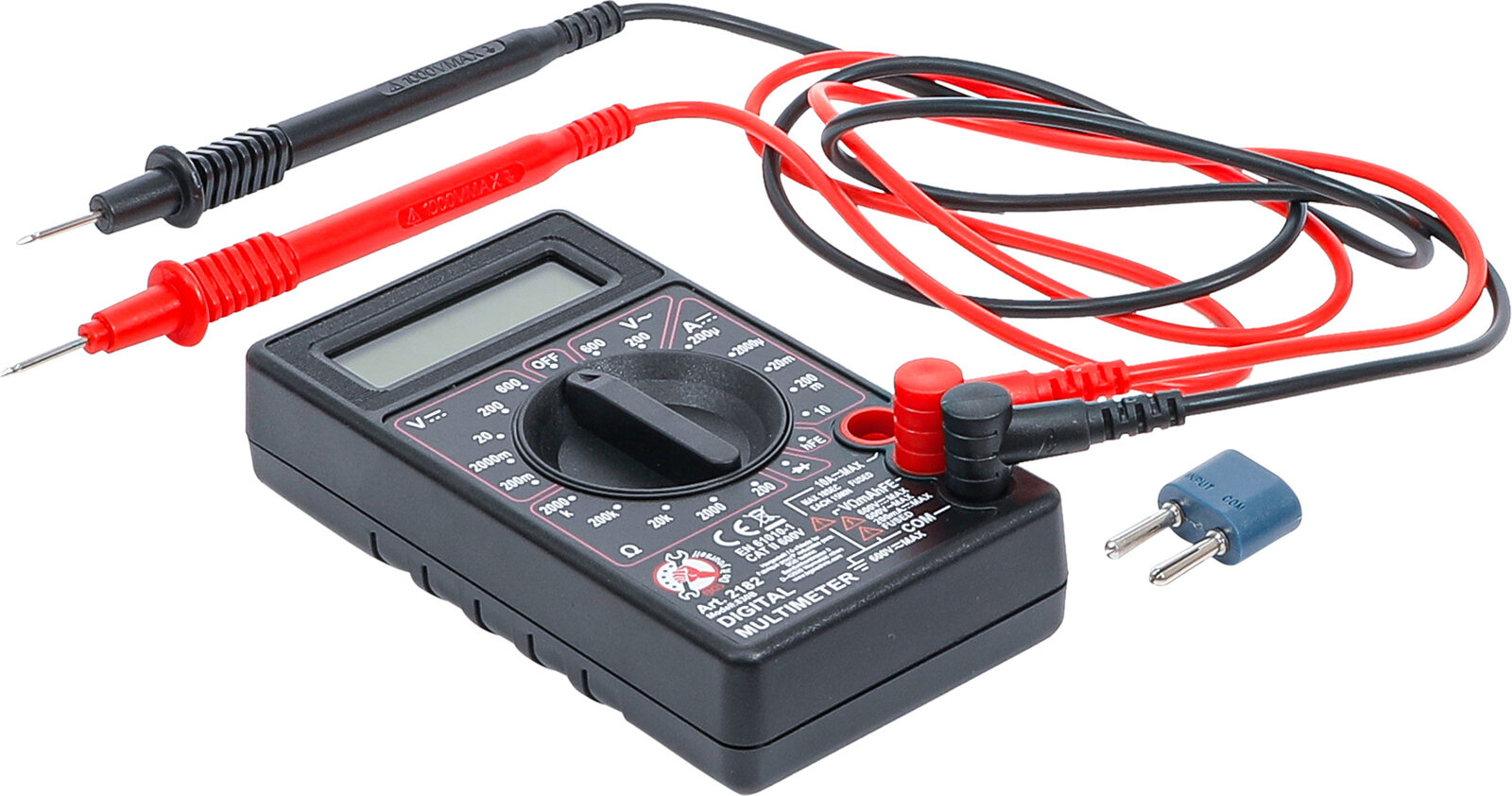

BGS DIY Digital Multimeter

Description

• 7-segment display, 12.5 mm, 3.5 numbers
• suitable for measurements in CAT II ranges such as household appliances with connectors, car electronics, etc.

suitable for:

has the most common measuring ranges:

• DC voltage: 200 mV, 2000 mV, 20 V, 200 V, 600 V
• AC voltage: 200 V, 600 V
• direct current: 200 µA, 2000 µA, 20 mA, 200 mA, 10 A
• resistance: 200 ohm, 2000 ohm, 20 kiloohm, 200 kiloohm, 2000 kiloohm
• diode test
• transistor test (hfe) via adaptor
• battery info display shows if battery should be replaced
• operating temperature: 10°C~40°C / 0~75% relative air humidity
• storage temperature: -10°C~50°C / 0~75% relative air humidity

scope of delivery:

• batteries
• measuring cable
• adaptor for transistor test

Delivery: not in stock – ordered from the manufacturer for you, usually 10–12 working days.
