BGS technic Exhaust Gas Counter-Pressure Tester

Description

• for testing of the exhaust back pressure
• to be connected to oxygen sensor thread of the exhaust system or to flange of exhaust gas recirculation valve
• allows conclusions on blockages or constrictions, such as e.g. clogged catalysts or particulate filters, thereby preventing expensive repair costs due to damage to the turbocharger

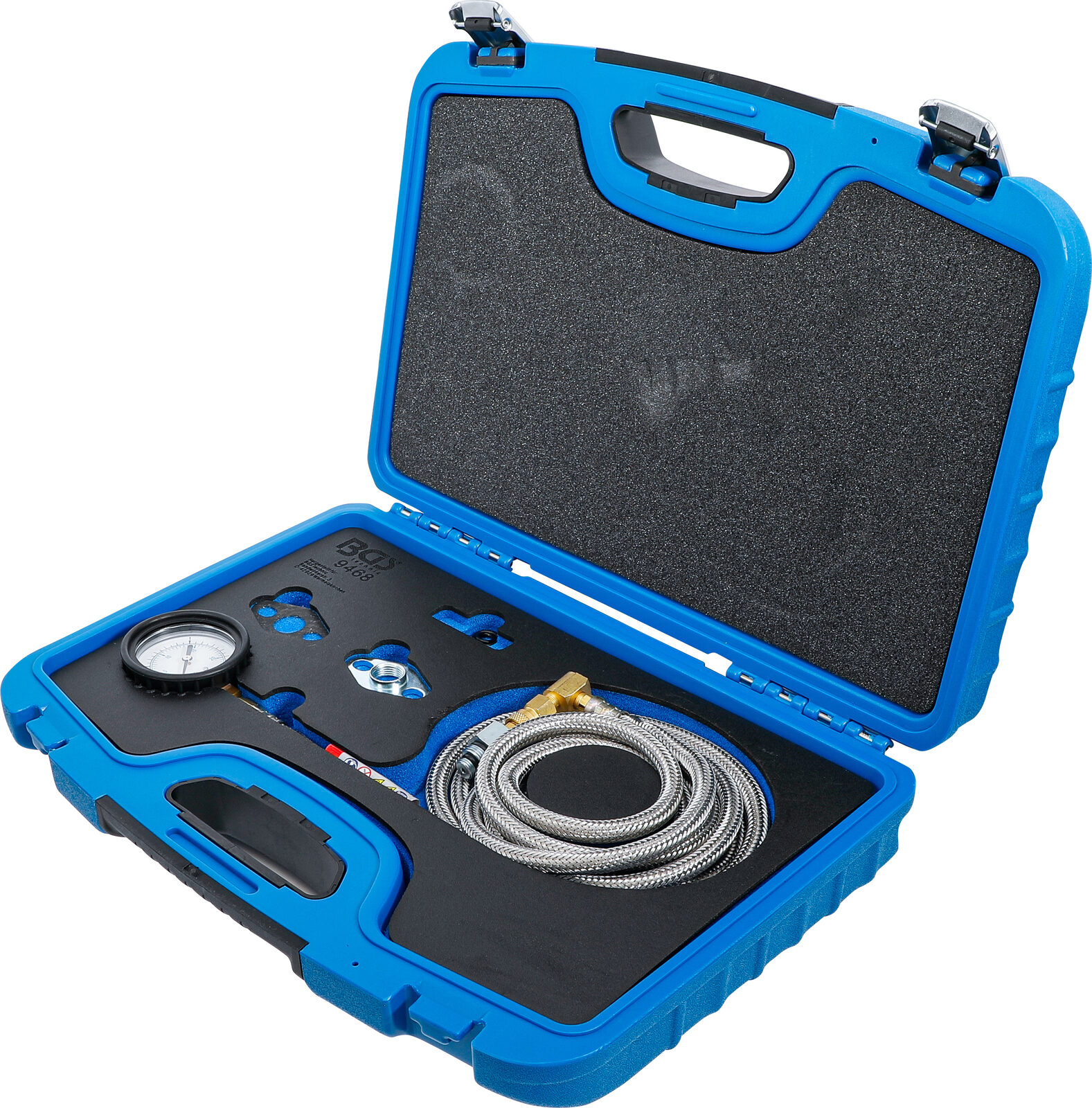

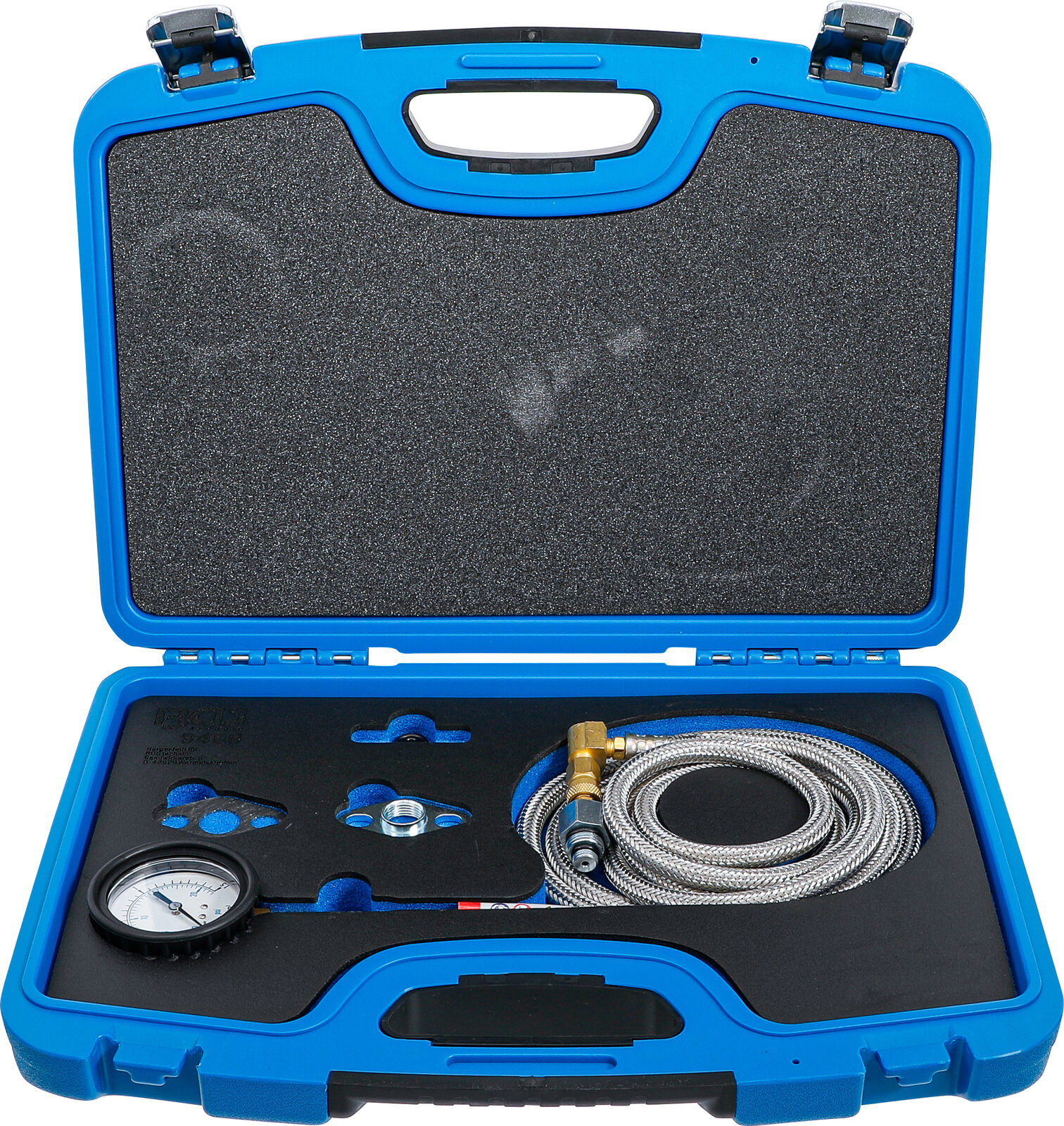

scope of delivery:

• 1 adaptor for oxygen sensor thread M12 x 1.25
• 1 adaptor for oxygen sensor thread M18 x 1.5
• 1 flange adaptor for exhaust gas recirculation valve (EGR)
• 1 pressure gauge, 57 mm with two ranges in psi & kg/cm²
• 1 braided stainless steel casing hose, length 1.9 m
