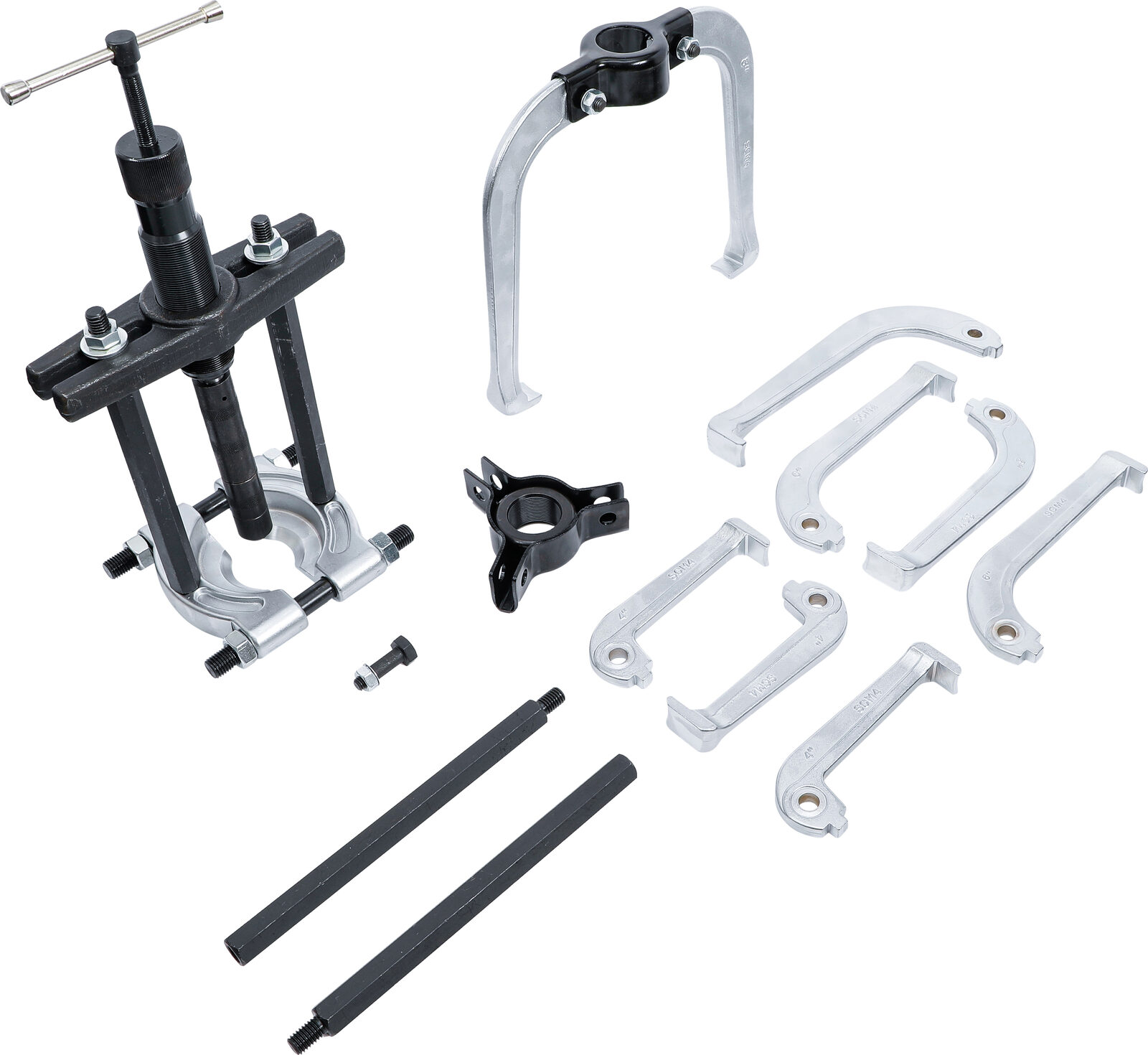

BGS technic Hydraulic Puller Set, 10 t, 25 pcs.

Description

• hydraulic ram 10 ton
• 2 extension rods
• one twin head and one triple head
• 3 legs each in following lengths: 100, 150 und 200 mm
• max. pulling width
• 240 mm at 100 mm puller legs length
• 280 mm at 150 mm puller legs length
• 300 mm at 200 mm puller legs length
• clamping width (A) min. / max. in mm: min. 14 mm / max. 62 mm
• puller bolt receiving thread (B): 5/8″ x 18 UNF
• clamping bolt distance (C) in mm: 111 mm
• camping bolt thread (D): 5/8″ x 18 UNF
• puller bolt distance (E) min. / max. in mm: min. 64 mm / max. 210 mm

Delivery: not in stock – ordered from the manufacturer for you, usually 10–12 working days.
