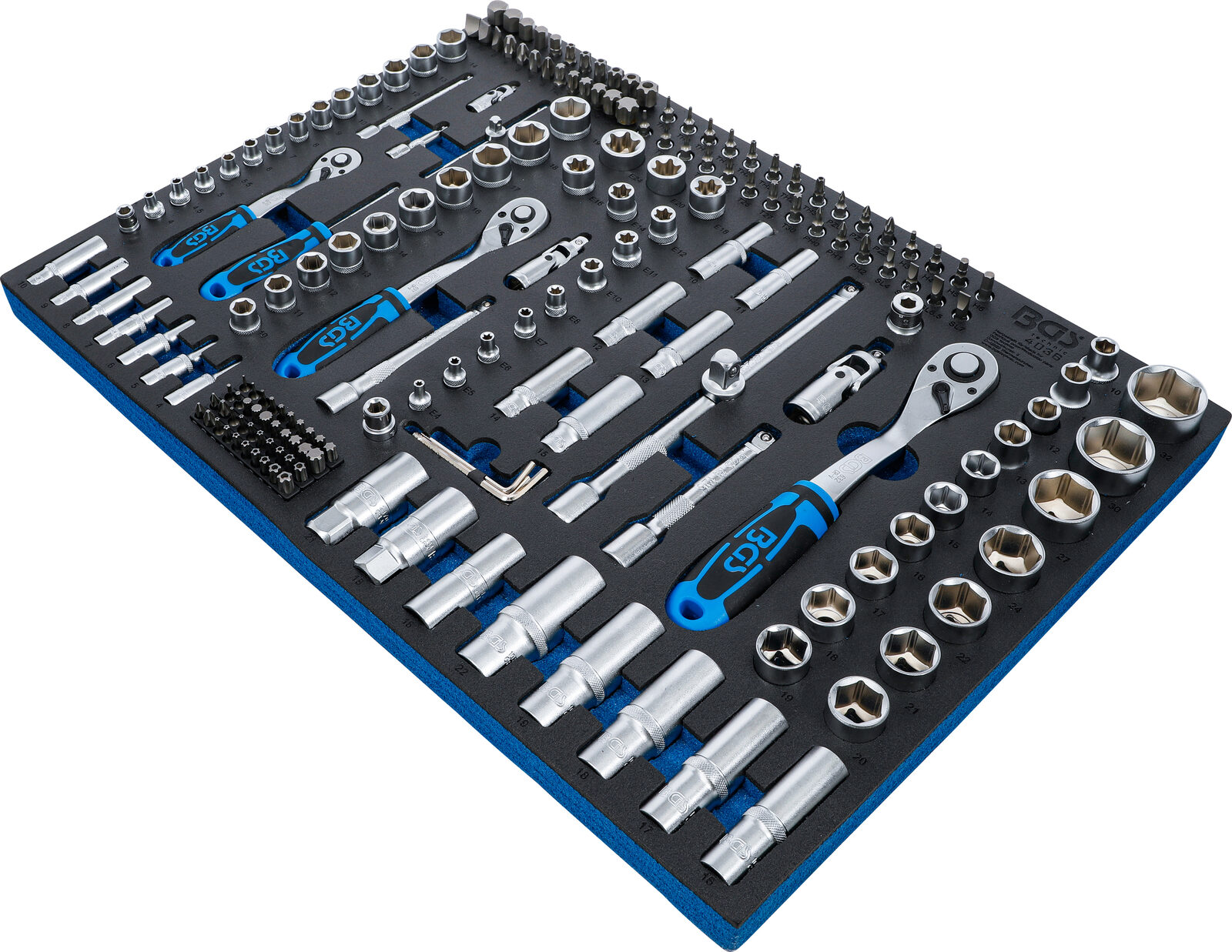

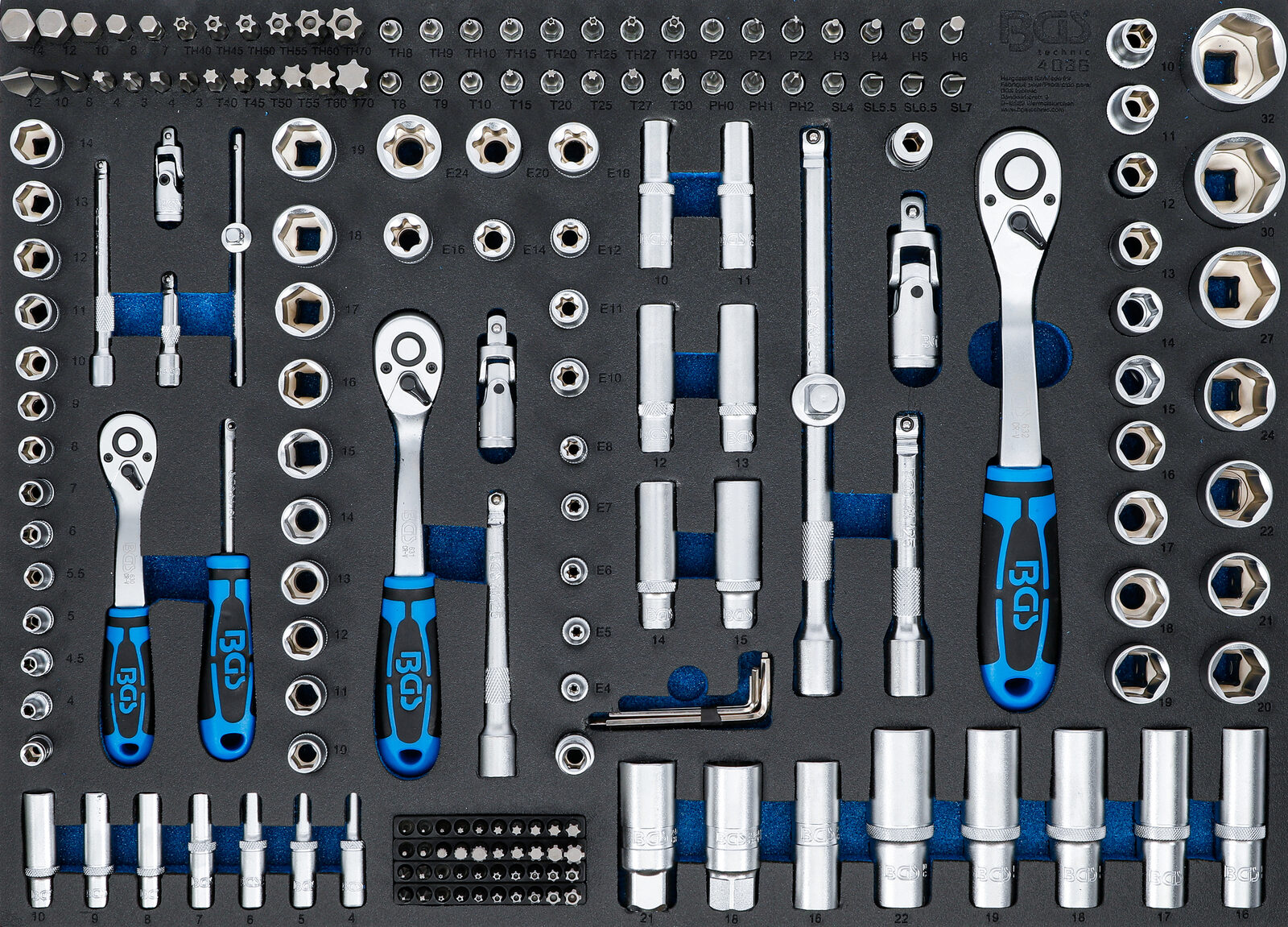

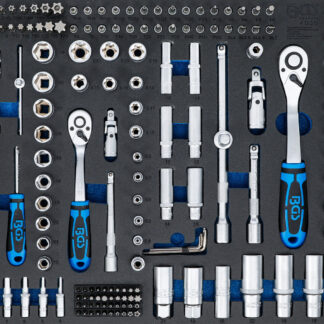

BGS technic Tool Tray 3/3: Socket Set, 192 pcs.

Description

• extensively equipped for demanding mechanics as well as do-it-yourselfers
• with hexagon sockets in short and deep version, E-type sockets, bit sockets and bits with different output profiles
• high-quality fine-tooth reversible ratchet with 90 teeth, inserted reversible lever, ergonomic two-component handle and quick-release button for fast tool changes
• contains among other things further diverse operating elements such as extension bars, sliding handle, spinner handle and universal joint
• for covering various screwing applications, even in hard-to-reach areas
• tool tray made from high-resistance foam
• the tools are protected in the hard foam tray and are stowed in the recesses in a non-slip manner
• each individual tool has its appropriate place
• suitable for all BGS workshop trolleys
• knurled
• sockets, extension bars, reversible ratchets, universal joints and spinner handle made of chrome vanadium steel
• bit sockets and bits made of high quality chrome vanadium steel (S2)

suitable for:

with 6.3 mm (1/4″) drive:

• reversible ratchet, sliding bar, handle 150 mm
• extension bar 50 and 100 mm, universal joint
• 13 sockets: 4 – 4.5 – 5 – 5.5 – 6 – 7 – 8 – 9 – 10 – 11 – 12 – 13 – 14 mm
• 7 deep sockets: 4 – 5 – 6 – 7 – 8 – 9 – 10 mm
• 5 E-type sockets: E4 – E5 – E6 – E7 – E8
• 1 bitholder
• 8 T-Star bit sockets (for Torx): T8 – T9 – T10 – T15 – T20 – T25 – T27 – T30
• 8 bit sockets, T-Star tamperproof (for Torx): T8 – T9 – T10 – T15 – T20 – T25 – T27 – T30
• 3 cross slot bit sockets: PH0 – PH1 – PH2
• 3 cross slot bit sockets: PZ0 – PZ1 – PZ2
• 4 internal hexagon bit sockets: 3 – 4 – 5 – 6 mm
• 4 slotted bit sockets: 4 – 5.5 – 6.5 – 7 mm

with 10 mm (3/8″) drive:

• reversible ratchet
• extension bar 125 mm, universal joint
• 1 glow plug socket 18 mm
• 1 bitholder 8 mm (5/16″)
• 10 sockets: 10 – 11 – 12 – 13 – 14 – 15 – 16 – 17 – 18 – 19 mm
• 6 deep sockets: 10 – 11 – 12 – 13 – 14 – 15 mm
• 6 E-type sockets: E10 – E11 – E12 – E14 – E16 – E18

with 12,5 mm (1/2″) drive:

• reversible ratchet
• extension bar 125 and 150 mm, universal joint, sliding bar adaptor for 12.5 mm (1/2″)
• 1 bitholder 8 mm
• 2 glow plug socket 16 – 21 mm
• 17 sockets: 10 – 11 – 12 – 13 – 14 – 15 – 16 – 17 – 18 – 19 – 20 – 21 – 22 – 24 – 27 – 30 – 32 mm
• 5 deep sockets: 16 – 17 – 18 – 19 – 22 mm
• 2 E-type sockets: E20 – E24

bits with 8 mm drive:

• 3 slot: 8 – 10 – 12 mm
• 2 cross slot: PH3 – PH4
• 2 cross slot: PZ3 – PZ4
• 5 internal hexagon: 7 – 8 – 10 – 12 – 14 mm
• 6 T-Star (for Torx): T40 – T45 – T50 – T55 – T60 – T70
• 6 T-Star tamperproof (for Torx): T40 – T45 – T50 – T55 – T60 – T70

bits with 6.3 mm drive:

• 10 T-Star (for Torx): T5 – T6 – T7 – T10 – T15 – T20 – T25 – T27 – T30 – T40
• 8 T-Star tamperproof (for Torx): T7 – T10 – T15 – T20 – T25 – T27 – T30 – T40
• 5 spline (for Ribe): M5 – M6 – M7 – M8 – M9
• 3 spline (for XZN): M5 – M6 – M8 – TS10
• 8 T-Star (for Torx Plus): TS10 – TS15 – TS20 – TS25 – TS27 – TS30 – TS40 – TS45
• 2 cross slot: PH1 – PH2
• 2 cross slot: PZ1 – PZ2
• 2 internal hexagon: 2 – 2.5 mm
• 7 internal hexagon L-type keys: 1.27 – 1.5 – 2 – 2.5 – 3 – 4

scope of delivery:

Delivery: not in stock – ordered from the manufacturer for you, usually 10–12 working days.
